Predict the vacation before it begins.

 Detailed Implementation Architecture

Magnolia Whispers should be designed as a multi-model travel decisioning platform, not as a single AI model. The platform continuously collects customer signals, predicts travel intent and destination preference, retrieves eligible hotels, ranks them, determines whether an offer is appropriate, selects the best engagement time and channel, and generates a compliant personalized message.

The architecture should separate four concerns:

1. Data and identity

2. Machine-learning prediction

3. Business decisioning and orchestration

4. Activation, measurement, and governance

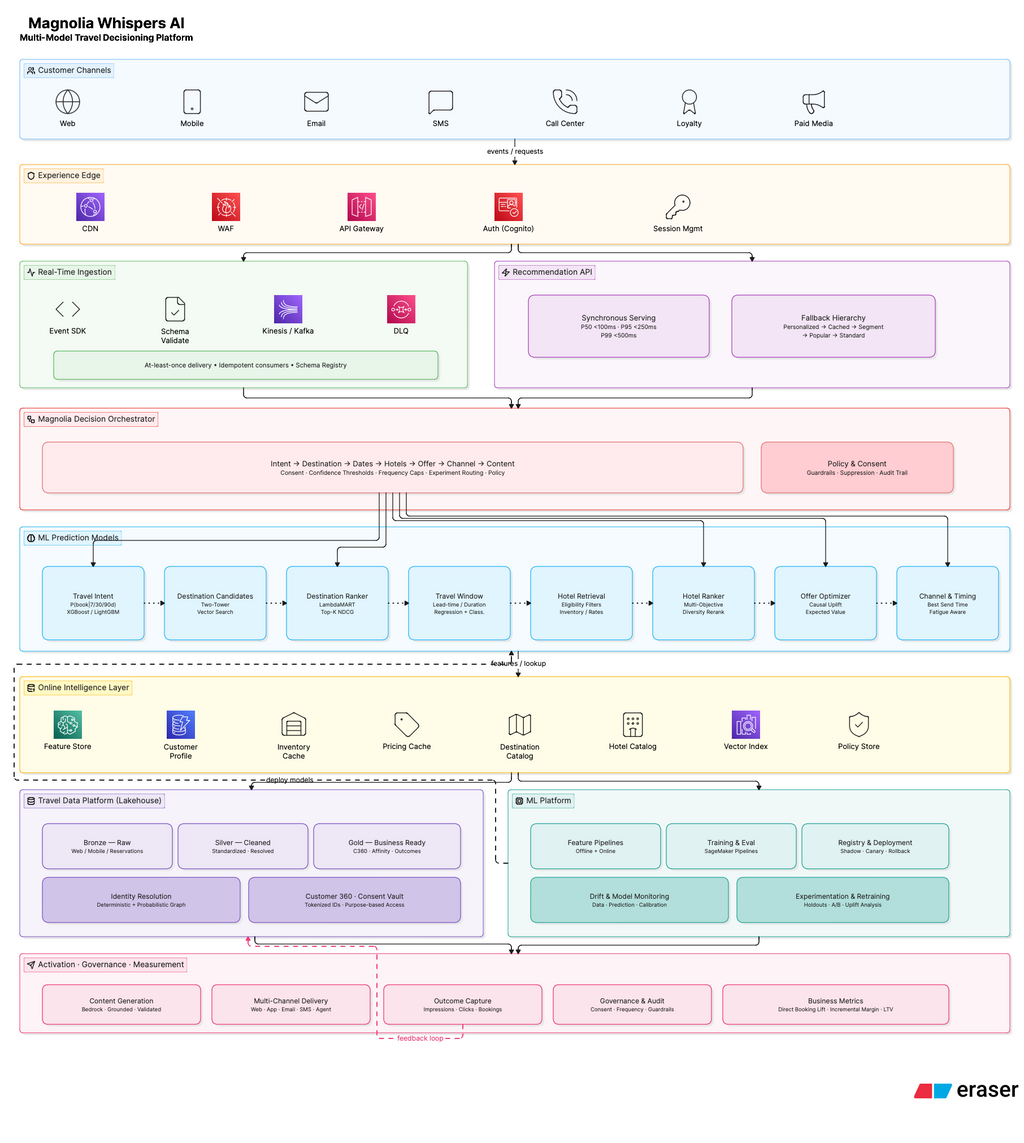

1. Architecture at a Glance

┌──────────────────────────────────────────────────────────────────────┐
│                         CUSTOMER CHANNELS                            │
│ Web │ Mobile │ Email │ SMS │ Call Center │ Loyalty │ Paid Media     │
└───────────────────────────────┬──────────────────────────────────────┘
                                │ Events / API Requests
                                ▼
┌──────────────────────────────────────────────────────────────────────┐
│                         EXPERIENCE EDGE                              │
│ CDN │ WAF │ API Gateway │ Authentication │ Session Management       │
└───────────────────────────────┬──────────────────────────────────────┘
                                │
                 ┌──────────────┴───────────────┐
                 ▼                              ▼
┌───────────────────────────────┐   ┌──────────────────────────────────┐
│ REAL-TIME EVENT INGESTION     │   │ RECOMMENDATION API              │
│ Kafka / Kinesis               │   │ Low-latency synchronous serving │
│ Event validation              │   │                                 │
│ Schema enforcement            │   └────────────────┬─────────────────┘
└───────────────┬───────────────┘                    │
                ▼                                    ▼
┌──────────────────────────────────────────────────────────────────────┐
│                   MAGNOLIA DECISION ORCHESTRATOR                     │
│ Intent → Destination → Dates → Hotels → Offer → Channel → Content   │
│ Rules │ Consent │ Confidence │ Frequency Caps │ Experiment Routing  │
└───────────┬──────────────┬───────────────┬──────────────┬────────────┘
            │              │               │              │
            ▼              ▼               ▼              ▼
      Intent Model   Destination Model  Hotel Ranker   Offer Optimizer
            │              │               │              │
            └──────────────┴───────┬───────┴──────────────┘
                                   ▼
┌──────────────────────────────────────────────────────────────────────┐
│                   ONLINE INTELLIGENCE LAYER                          │
│ Online Feature Store │ Customer Profile │ Inventory │ Pricing Cache │
│ Destination Catalog │ Hotel Catalog │ Vector Index │ Policy Store   │
└───────────────────────────────┬──────────────────────────────────────┘
                                │
                                ▼
┌──────────────────────────────────────────────────────────────────────┐
│                     TRAVEL DATA PLATFORM                             │
│ Lakehouse │ Customer 360 │ Reservations │ Search Events │ Campaigns │
│ Loyalty │ Hotel Inventory │ Rates │ External Context │ Consent      │
└───────────────────────────────┬──────────────────────────────────────┘
                                │
                                ▼
┌──────────────────────────────────────────────────────────────────────┐
│                        ML PLATFORM                                   │
│ Feature Pipelines │ Training │ Evaluation │ Registry │ Deployment   │
│ Drift Monitoring │ Experimentation │ Retraining │ Rollback          │
└──────────────────────────────────────────────────────────────────────┘

2. Start with Clear Service Boundaries

The platform should be divided into independent services rather than built as one large application.

Core services

Each model can then be deployed, scaled, monitored, and updated independently.

3. Data Source Architecture

Magnolia needs data from three broad categories.

A. Customer and behavioral systems

These reveal what the customer has done and what they may currently want.

Website analytics
Mobile application events
Reservation system
Customer relationship management platform
Loyalty platform
Customer data platform
Email engagement platform
Call-center system
Customer-service interactions
Saved properties and wish lists
Search and filter activity

Important behavioral events include:

destination_view
property_view
date_search
amenity_filter
room_view
offer_view
email_open
email_click
property_save
booking_start
booking_abandon
booking_complete
booking_cancel
loyalty_points_view

B. Hotel operational systems

These determine whether a recommendation is actually executable.

Property management system
Central reservation system
Revenue management system
Room inventory
Rate plans
Promotions
Loyalty redemption rules
Property metadata
Amenities
Cancellation policies
Package availability
Occupancy forecasts

C. External context

External data can improve prediction, but it should not override first-party behavior.

Holiday calendars
School vacation calendars
Weather forecasts
Historical climate
Local events
Concerts
Conferences
Flight schedules
Flight prices
Destination demand trends
Travel advisories
Geographic distance
Currency and economic indicators

External data should normally be associated with destinations or travel windows rather than directly attached to a customer profile.

4. Event-Driven Ingestion Design

Magnolia requires both streaming and batch ingestion.

Real-time event flow

When a customer searches for Maui, the website or mobile app publishes an event.

{
  "event_id": "evt-89281",
  "schema_version": "1.2",
  "event_type": "destination_search",
  "event_timestamp": "2026-07-11T22:20:00Z",
  "anonymous_id": "browser-8821",
  "customer_id": "customer-10293",
  "session_id": "session-7721",
  "channel": "mobile_app",
  "destination_id": "dest-maui",
  "search_parameters": {
    "check_in": "2026-09-12",
    "check_out": "2026-09-18",
    "guests": 2,
    "rooms": 1
  },
  "consent": {
    "analytics": true,
    "personalization": true,
    "marketing": true
  }
}

Recommended event flow

Website or App
      ↓
Event Collection SDK
      ↓
API Gateway or Streaming Endpoint
      ↓
Schema Validation
      ↓
Kafka / Amazon Kinesis
      ├── Real-Time Feature Processor
      ├── Customer Profile Updater
      ├── Journey Trigger Processor
      ├── Monitoring Pipeline
      └── Raw Event Storage

Why schema enforcement matters

Without a contract, different channels may represent the same action differently:

destination_clicked
destination_viewed
view_destination
destination_page_open

That creates unreliable training data. Use a schema registry and version every event.

A standard event envelope should include:

event_id
event_type
schema_version
timestamp
customer or anonymous identifier
session identifier
channel
source application
consent context
business payload
trace identifier

Delivery semantics

Use at-least-once delivery, because losing booking or interaction events is usually worse than receiving duplicates.

Every consumer should therefore be idempotent:

If event_id has already been processed:
    Ignore duplicate
Else:
    Process and record event_id

A dead-letter queue should capture invalid or repeatedly failing events.

5. Batch and Change Data Capture

Not every source needs streaming.

Batch data

Nightly or hourly jobs can load:

Historical reservations
Customer master records
Hotel catalogs
Loyalty balances
Campaign performance
Property attributes
Revenue and profitability
Customer service history

Change data capture

Change data capture is appropriate for operational changes that materially affect recommendations:

Room inventory changed
Rate plan changed
Reservation canceled
Loyalty tier changed
Promotion activated
Property temporarily closed

A reservation cancellation, for example, should update the customer’s profile and potentially reactivate destination intent.

6. Identity Resolution

Identity resolution is one of the most important components because travel customers frequently browse anonymously before logging in.

Identity graph

Anonymous cookie ─────┐
Mobile device ID ─────┤
Email address ────────┤
Phone number ─────────┼──► Unified Customer ID
Loyalty ID ───────────┤
Reservation ID ───────┤
CRM contact ID ───────┘

Resolution methods

Deterministic matching

Use exact or strongly verified identifiers:

Logged-in loyalty ID
Verified email
Authenticated account ID
Confirmed phone number
Reservation confirmation

Probabilistic matching

Use cautiously for signals such as:

Shared device
IP address
Browser fingerprint
Similar names
Household address
Behavioral similarity

Probabilistic identity should have a confidence score. It should not be used for sensitive or high-impact personalization unless the confidence is sufficiently high.

Identity graph data model

{
  "unified_customer_id": "C10293",
  "identities": [
    {
      "type": "loyalty_id",
      "value_hash": "a82f...",
      "confidence": 1.0,
      "verified": true
    },
    {
      "type": "browser_id",
      "value_hash": "7bc9...",
      "confidence": 0.82,
      "verified": false
    }
  ],
  "last_resolved_at": "2026-07-11T22:20:02Z"
}

Personal identifiers should be tokenized or hashed outside the secure identity vault.

7. Customer 360 Profile

The Customer 360 profile should be a composed service, not simply one giant database table.

Profile domains

Identity profile
Reservation history
Travel preference profile
Engagement profile
Loyalty profile
Value profile
Intent profile
Consent profile
Communication history
Current-session context

Example profile

{
  "customer_id": "C10293",
  "home_market": "Southern California",
  "loyalty": {
    "tier": "Gold",
    "points_balance": 48000
  },
  "travel_preferences": {
    "trip_type": ["leisure", "couples"],
    "property_types": ["resort", "boutique"],
    "preferred_amenities": ["beachfront", "spa", "ocean_view"],
    "average_nightly_rate": 410,
    "average_trip_length": 5.7
  },
  "behavior": {
    "last_search_destination": "Maui",
    "destination_views_7d": 4,
    "hotel_views_7d": 7,
    "days_since_last_booking": 286
  },
  "consent": {
    "personalization": true,
    "email_marketing": true,
    "sms_marketing": false
  }
}

This object should be constructed from governed domain data rather than manually maintained by channel applications.

8. Lakehouse and Data Model

A lakehouse works well because Magnolia needs:

Raw event storage
Historical analytics
Structured reservation data
Large-scale feature engineering
Machine-learning training
Governed reporting
Replay capability

Recommended logical layers

Bronze: raw data

Store events and source extracts almost exactly as received.

raw/web_events
raw/mobile_events
raw/reservations
raw/loyalty
raw/property_inventory
raw/campaign_response

Silver: cleaned and standardized data

validated_customer_events
resolved_customer_identity
normalized_reservations
standardized_hotel_catalog
daily_inventory_snapshot
customer_consent_history

Gold: business-ready data

customer_360
customer_destination_affinity
customer_travel_intent
hotel_eligibility
offer_performance
recommendation_outcomes
model_training_labels
executive_kpis

Important fact tables

fact_customer_event
fact_search
fact_reservation
fact_recommendation
fact_recommendation_impression
fact_offer
fact_conversion
fact_cancellation
fact_campaign_touch

Important dimensions

dim_customer
dim_destination
dim_property
dim_rate_plan
dim_channel
dim_campaign
dim_date
dim_offer
dim_loyalty_tier

9. Feature Store Design

The feature store is the connection between the data platform and the models.

It prevents training-serving skew, where a feature is calculated one way during training and another way in production.

Offline feature store

Used for:

Historical training datasets
Backtesting
Feature exploration
Batch scoring
Model evaluation

Typical storage:

S3 with Iceberg or Delta tables
Databricks Feature Store
SageMaker Feature Store offline store
Snowflake feature tables

Online feature store

Used for low-latency serving.

Typical technologies:

DynamoDB
Redis / ElastiCache
Cassandra
SageMaker Feature Store online store

Feature groups

Customer features

days_since_last_trip
days_since_last_booking
bookings_last_12_months
average_trip_duration
average_nightly_rate
leisure_trip_ratio
cancellation_rate
loyalty_points_balance
preferred_property_category
preferred_amenities_embedding

Destination affinity features

destination_views_1d
destination_views_7d
destination_views_30d
destination_searches_30d
days_since_last_destination_search
historical_stays_at_destination
similar_destination_affinity
destination_email_clicks

Sequence features

last_20 destinations viewed
last_10 properties viewed
last 5 completed trips
search-to-book intervals
session event sequence

Context features

current month
days until holiday
current device
current channel
customer home airport
destination weather
destination demand
travel advisory state

Commercial features

available_inventory
current rate
rate relative to customer normal spend
promotion eligibility
expected margin
occupancy forecast
loyalty redemption value

Feature definition example

name: maui_destination_views_7d
entity: customer_id
source: validated_customer_events
logic: >
  count events where destination_id = 'dest-maui'
  and event_type in ('destination_view', 'destination_search')
  during the previous 7 days
freshness: 5_minutes
owner: recommendation_data_team
pii: false
version: 3

Every feature should have:

Owner
Business definition
Source
Calculation
Freshness requirement
Data type
Validation rules
Version
Privacy classification

10. Model Architecture

Magnolia should use a sequence of specialized models.

Travel Intent
      ↓
Destination Candidate Generation
      ↓
Destination Ranking
      ↓
Travel Window Prediction
      ↓
Hotel Retrieval
      ↓
Hotel Ranking
      ↓
Offer Optimization
      ↓
Best Channel and Time
      ↓
Content Generation

11. Travel Intent Model

The intent model predicts whether the customer is likely to make a booking within a defined period.

For example:

P(booking in 7 days)
P(booking in 30 days)
P(booking in 90 days)

Training label

A training example might be defined as:

Observation time: January 1
Features: All information available through January 1
Positive label: Customer books between January 2 and January 31
Negative label: Customer does not book during that period

The system must avoid including data created after the observation time, or it will introduce data leakage.

Suitable models

For an initial implementation:

XGBoost
LightGBM
CatBoost

These models work well with structured customer, behavioral, and contextual data.

As data volume grows, Magnolia can introduce:

Temporal convolutional networks
Recurrent neural networks
Transformers for behavioral sequences

Output

{
  "customer_id": "C10293",
  "booking_probability_7d": 0.21,
  "booking_probability_30d": 0.67,
  "booking_probability_90d": 0.83,
  "intent_level": "high",
  "model_version": "intent-v14"
}

Intent should be calibrated. A score of 0.70 should approximately correspond to a 70% booking likelihood among comparable scored customers.

12. Destination Candidate Generation

Scoring every destination for every customer is unnecessarily expensive and often produces low-quality results.

Generate perhaps 50 candidates using several strategies.

Candidate sources

Customer’s previously visited destinations
Recently searched destinations
Collaborative-filtering candidates
Embedding-similarity candidates
Seasonal candidates
Geographically similar destinations
Popular destinations for the customer’s segment
Destinations served from the customer’s home market
Paid or promoted destinations, subject to relevance rules

Candidate union

20 collaborative candidates
15 embedding candidates
10 behavioral candidates
10 seasonal candidates
5 business-priority candidates
                 ↓
Deduplicate and filter
                 ↓
Approximately 40–60 candidates

Each candidate should retain its source:

{
  "destination_id": "dest-maui",
  "candidate_sources": [
    "recent_search",
    "embedding_similarity",
    "seasonal_affinity"
  ]
}

Candidate-source information becomes a useful ranking feature.

13. Two-Tower Recommendation Model

A two-tower model is a strong approach for scalable candidate generation.

Customer tower

Transforms customer features into an embedding.

Travel history
Budget
Seasonality
Preferences
Recent behavior
Loyalty information
Home market
              ↓
Neural network
              ↓
Customer vector

Destination tower

Transforms destination characteristics into an embedding.

Climate
Location
Hotel mix
Average price
Amenities
Seasonality
Travel time
Popularity
              ↓
Neural network
              ↓
Destination vector

The system retrieves destinations whose vectors are close to the customer vector using approximate nearest-neighbor search.

Possible vector indexes include:

OpenSearch vector engine
Pinecone
Milvus
FAISS
pgvector

14. Destination Ranking Model

After generating candidates, a richer ranking model scores each customer-destination pair.

Ranking features

Customer destination affinity
Recent search intensity
Historical destination visits
Similarity to previously visited destinations
Seasonality match
Expected flight accessibility
Distance from home
Average destination rate versus customer budget
Destination inventory
Local events
Weather suitability
Destination popularity
Collaborative-filtering score
Two-tower similarity score

Model choices

LambdaMART
LightGBM ranking
XGBoost ranking
Deep neural ranking model
Transformer-based sequential recommender
Ensemble of ranking models

Ranking output

{
  "customer_id": "C10293",
  "destinations": [
    {
      "destination_id": "dest-maui",
      "score": 0.91,
      "calibrated_probability": 0.48,
      "rank": 1
    },
    {
      "destination_id": "dest-honolulu",
      "score": 0.73,
      "calibrated_probability": 0.24,
      "rank": 2
    }
  ]
}

Top-3 accuracy is often more useful than requiring the model to predict one exact destination.

15. Travel Window Prediction

Magnolia also needs to predict:

When the customer will book
When the customer will travel
How long the trip will last

This can be implemented as a combination of models:

Booking lead-time regression
Travel month classification
Trip-duration regression
Date-range ranking

Example output:

{
  "predicted_booking_window": {
    "start": "2026-07-18",
    "end": "2026-07-31"
  },
  "predicted_travel_window": {
    "start": "2026-09-05",
    "end": "2026-09-25"
  },
  "predicted_nights": 6
}

When confidence is low, Magnolia should search several plausible windows rather than pretending that one exact date is certain.

16. Hotel Retrieval Before Ranking

The system must separate retrieval from ranking.

Retrieval asks:

Which hotels are eligible?

Ranking asks:

Which eligible hotels are most appropriate?

Hard eligibility filters

Destination match
Inventory available
Required room capacity
Property open and bookable
Valid rate plan
Customer market eligibility
Loyalty eligibility
Promotion availability
Accessibility requirements
Policy restrictions
Travel-date compatibility

Retrieval request

{
  "destination_id": "dest-maui",
  "date_windows": [
    {
      "check_in": "2026-09-12",
      "check_out": "2026-09-18"
    }
  ],
  "guests": 2,
  "rooms": 1,
  "loyalty_tier": "Gold",
  "currency": "USD"
}

Retrieval response

{
  "properties": [
    {
      "property_id": "H204",
      "available": true,
      "lowest_rate": 429,
      "eligible_offers": [
        "breakfast_package",
        "double_points"
      ]
    }
  ],
  "inventory_timestamp": "2026-07-11T22:20:05Z"
}

Prices and availability should have a short time-to-live because they change rapidly.

17. Hotel Ranking Model

The hotel ranker scores customer-property combinations.

Customer-property features

Price relative to normal spend
Brand affinity
Previous stays at the brand
Property-category preference
Amenity match
Beach or city preference
Room-type preference
Review score
Distance from destination center
Loyalty benefit
Cancellation flexibility
Predicted booking probability
Expected contribution margin
Inventory pressure

Multi-objective ranking

Do not optimize only for revenue or only for conversion.

A practical objective might be:

Final score =
0.45 × predicted booking probability
+ 0.20 × customer preference match
+ 0.15 × expected margin
+ 0.10 × loyalty value
+ 0.10 × inventory objective

The exact weights should be tuned through experiments and governance.

Diversity constraints

Without diversity controls, all top recommendations may be nearly identical.

The final list should consider:

Different price points
Different property styles
Different neighborhoods
Different amenity combinations
Different brands when appropriate

A re-ranking layer can enforce diversity after the model produces its initial scores.

18. Offer Optimization

The offer service should answer:

What is the least expensive intervention that creates meaningful incremental conversion?

Candidate offers

No incentive
Complimentary breakfast
Late checkout
Room upgrade
Resort credit
Double loyalty points
Flexible cancellation
Package inclusion
Small discount
Large discount, only when justified

Expected value calculation

For each offer:

Expected contribution =
P(conversion | offer)
× Expected booking margin
− Expected incentive cost
− Channel cost
− Expected cancellation cost

Example:

The optimizer would select the offer that maximizes incremental expected contribution, subject to business rules.

Causal uplift modeling

A standard conversion model can over-discount because it predicts who will convert, not who will convert because of the offer.

A better mature-state architecture uses uplift modeling:

Expected conversion with treatment
− Expected conversion without treatment
= Incremental treatment effect

This helps identify:

Persuadables: offer changes behavior
Sure things: likely to book without an offer
Lost causes: unlikely to book even with an offer
Do-not-disturbs: offer may reduce engagement

19. Channel and Timing Model

Channel and timing should be modeled together.

Candidate channels

Website personalization
Mobile-app module
Push notification
Email
SMS
Call-center recommendation
Travel-advisor suggestion
Paid media suppression or activation

Features

Historical opens and clicks by channel
Preferred engagement time
Recent communication volume
Customer time zone
Session activity
Device type
Campaign fatigue
Purchase urgency
Channel consent
Previous unsubscribe behavior

Output

{
  "primary_channel": "email",
  "secondary_channel": "mobile_push",
  "recommended_send_at": "2026-07-16T19:15:00-07:00",
  "maximum_messages_7d": 2,
  "suppress_paid_media": false
}

The result must pass through consent and frequency rules before activation.

20. Decision Orchestration

The orchestrator is the center of Magnolia.

It should be deterministic and observable even though it invokes probabilistic models.

Orchestration flow

1. Receive request or qualifying behavioral event
2. Validate request and consent context
3. Resolve unified customer identity
4. Retrieve customer and session features
5. Score travel intent
6. Stop or downgrade personalization if intent is low
7. Generate destination candidates
8. Rank destinations
9. Estimate travel and booking windows
10. Retrieve available hotels
11. Rank eligible hotels
12. Generate offer candidates
13. Optimize the offer
14. Determine channel and timing
15. Apply policy, consent, and frequency rules
16. Assign experiment group
17. Create grounded content
18. Return or activate recommendation
19. Record the full decision trace
20. Capture downstream outcome

Pseudocode

def create_recommendation(customer_id: str, channel: str, session_id: str):
    profile = customer_profile_service.get(customer_id)
    policy = policy_service.evaluate(profile, channel)

    if not policy.personalization_allowed:
        return standard_experience()

    features = feature_service.get_online_features(
        customer_id=customer_id,
        session_id=session_id
    )

    intent = intent_model.predict(features)

    if intent.probability_30d < 0.25:
        return inspirational_content_without_offer()

    destination_candidates = candidate_service.generate(
        customer_id=customer_id,
        features=features
    )

    destinations = destination_ranker.rank(
        customer_id,
        destination_candidates,
        features
    )

    travel_window = travel_window_model.predict(features)

    hotels = inventory_service.find_available(
        destination_ids=destinations.top_ids(3),
        travel_windows=travel_window.candidate_windows
    )

    ranked_hotels = hotel_ranker.rank(
        customer_id=customer_id,
        hotels=hotels,
        context=features
    )

    offer = offer_optimizer.select(
        customer_id=customer_id,
        property=ranked_hotels[0],
        eligible_offers=ranked_hotels[0].eligible_offers
    )

    engagement = channel_timing_model.predict(features)

    decision = policy_service.final_check(
        destination=destinations[0],
        hotel=ranked_hotels[0],
        offer=offer,
        engagement=engagement
    )

    content = content_service.generate(decision, profile)

    outcome_service.record_decision(decision)

    return decision.with_content(content)

21. Recommendation API Design

Request

POST /v1/recommendations

{
  "customer_id": "C10293",
  "anonymous_id": "browser-8821",
  "session_id": "S8821",
  "channel": "mobile_app",
  "placement": "homepage_hero",
  "request_timestamp": "2026-07-11T22:20:00Z"
}

Response

{
  "recommendation_id": "rec-70291",
  "customer_id": "C10293",
  "intent": {
    "level": "high",
    "booking_probability_30d": 0.67
  },
  "destination": {
    "destination_id": "dest-maui",
    "name": "Maui",
    "probability": 0.48
  },
  "travel_window": {
    "check_in_start": "2026-09-05",
    "check_in_end": "2026-09-25",
    "predicted_nights": 6
  },
  "properties": [
    {
      "property_id": "H204",
      "name": "Ocean Pearl Maui",
      "ranking_score": 0.89,
      "rate": {
        "amount": 429,
        "currency": "USD",
        "verified_at": "2026-07-11T22:20:05Z"
      },
      "offer": {
        "offer_id": "double_points_breakfast",
        "display_name": "Double points and breakfast"
      }
    }
  ],
  "engagement": {
    "recommended_channel": "email",
    "recommended_send_at": "2026-07-16T19:15:00-07:00"
  },
  "content": {
    "headline": "Your next island escape may be closer than you think",
    "body": "Explore an ocean-view Maui stay during your preferred September travel window."
  },
  "expires_at": "2026-07-11T22:35:00Z",
  "model_versions": {
    "intent": "intent-v14",
    "destination": "destination-ranker-v22",
    "hotel": "hotel-ranker-v9",
    "offer": "offer-uplift-v4"
  }
}

Important API behavior

The response should include:

Recommendation ID
Expiration time
Model versions
Inventory verification time
Offer identifier
Decision rationale codes
Experiment assignment
Fallback status

This allows auditing and debugging.

22. Latency Design

Different use cases need different latency targets.

Website and mobile

Target:

P50: under 100 milliseconds
P95: under 250 milliseconds
P99: under 500 milliseconds

To meet this target:

Precompute destination candidates
Cache common destination and hotel data
Use online features
Use low-latency model endpoints
Parallelize independent model calls
Set strict downstream timeouts
Return graceful fallbacks

Email campaigns

A synchronous millisecond response is unnecessary. Batch scoring can process millions of customers.

Nightly audience generation
Hourly intent refresh
Campaign-time availability revalidation
Send-time offer validation

Call center

Target approximately one second or less, but the result can be richer because the agent is not waiting on a webpage render.

23. Fallback Design

The recommendation experience must continue even when a model or source fails.

Fallback hierarchy

Real-time personalized recommendation
       ↓ failure
Recent cached personalized recommendation
       ↓ unavailable
Segment-level recommendation
       ↓ unavailable
Market-level popular destination
       ↓ unavailable
Standard non-personalized experience

Examples:

Inventory API unavailable:
Do not display exact prices; show destination inspiration only.

Feature store unavailable:
Use recently cached customer features.

Content model unavailable:
Use approved content templates.

Destination score below threshold:
Show multiple broad destination ideas.

Consent unavailable:
Default to non-personalized content.

Never default to aggressive personalization when required governance data is missing.

24. Generative AI Architecture

The language model should only turn approved structured facts into language.

It should not decide:

Which destination to recommend
Which hotel to rank first
Whether a discount is appropriate
What the current price is
Whether inventory is available
What loyalty benefits exist

Grounded content flow

Recommendation Decision
        ↓
Approved Content Retrieval
        ├── Brand guidelines
        ├── Property descriptions
        ├── Destination descriptions
        ├── Offer terms
        └── Channel templates
        ↓
Prompt Construction
        ↓
LLM Generation
        ↓
Policy and factual validation
        ↓
Final Content

Prompt payload

{
  "task": "generate_email_copy",
  "facts": {
    "destination": "Maui",
    "property_name": "Ocean Pearl Maui",
    "travel_window": "September",
    "room_preference": "ocean view",
    "offer": "double loyalty points and complimentary breakfast"
  },
  "constraints": {
    "tone": "premium, warm, understated",
    "maximum_words": 65,
    "do_not_invent_prices": true,
    "do_not_claim_availability_beyond_expiration": true
  }
}

Output validation

Before publication:

Verify destination name
Verify property name
Verify offer ID and terms
Check prohibited language
Check brand tone
Check length
Check that no unsupported price was added
Check that no sensitive inference was exposed

For highly regulated or high-value campaigns, use approved templates with variable insertion rather than unrestricted free-form generation.

25. Feedback and Outcome Data

Every recommendation should generate a traceable outcome funnel.

Recommendation created
Recommendation delivered
Recommendation rendered
Recommendation viewed
Recommendation clicked
Destination searched
Property viewed
Booking started
Booking completed
Booking canceled
Offer redeemed
Customer opted out

Attribution record

{
  "recommendation_id": "rec-70291",
  "customer_id": "C10293",
  "event_type": "booking_complete",
  "reservation_id": "R88122",
  "booking_value": 2850,
  "currency": "USD",
  "destination_id": "dest-maui",
  "property_id": "H204",
  "attribution_window_days": 14,
  "event_timestamp": "2026-07-18T19:32:00Z"
}

The recommendation ID should travel through the website, mobile, campaign, and booking systems. Without it, attribution becomes unreliable.

26. Training Pipeline

The training platform should be separated from production inference.

Historical Events and Outcomes
             ↓
Point-in-Time Data Join
             ↓
Feature Validation
             ↓
Training Dataset
             ↓
Model Training
             ↓
Technical Evaluation
             ↓
Business Simulation
             ↓
Bias and Privacy Review
             ↓
Model Registry
             ↓
Approval Workflow
             ↓
Shadow Deployment
             ↓
Canary Deployment
             ↓
Full Production

Point-in-time correctness

When producing a training example for March 1, the pipeline may only use features available as of March 1.

Incorrect:

Using a cancellation that happened on March 20
to predict a booking decision made on March 1

Correct:

Reconstruct the customer profile exactly as it existed on March 1

This is critical for realistic model performance.

27. Model Registry and Deployment

Each registered model should contain:

Model name
Version
Algorithm
Training period
Training dataset version
Feature versions
Hyperparameters
Offline metrics
Calibration metrics
Segment-level metrics
Business simulation
Owner
Approval status
Container image
Deployment endpoint
Rollback version

Deployment strategy

Shadow mode

The new model scores live requests, but its decisions are not shown to customers.

Compare:

Current production score
New model score
Latency
Coverage
Prediction distribution
Potential business impact

Canary release

Send a small percentage of traffic to the new model:

5% → 10% → 25% → 50% → 100%

Automatically roll back if:

Latency rises
Error rate rises
Conversion drops
Opt-out rate rises
Feature values become invalid
Prediction distribution shifts unexpectedly

28. Evaluation Framework

Travel intent model

ROC-AUC
PR-AUC
Log loss
Brier score
Calibration
Recall among high-intent customers
Lift in top score deciles

Destination model

Top-1 accuracy
Top-3 accuracy
Recall at K
Mean reciprocal rank
NDCG at K
Catalog coverage
Destination diversity
Calibration

Hotel ranking model

NDCG
Mean reciprocal rank
Conversion at K
Revenue at K
Margin at K
Property coverage
Price-band diversity

Offer optimizer

Incremental conversion lift
Incremental margin
Offer cost per incremental booking
Average discount rate
No-offer conversion
Cannibalization rate

Channel and timing model

Open rate
Click rate
Conversion
Revenue per contact
Unsubscribe rate
Message fatigue
Incremental response versus normal send time

The primary success criterion should be incremental business value measured against a control group, not merely offline model accuracy.

29. Experimentation Architecture

Every eligible customer should be consistently assigned to an experiment group.

hash(customer_id + experiment_id) % 100

Example:

0–9: permanent holdout
10–54: existing recommendation logic
55–99: Magnolia treatment

Why persistent assignment matters

If a customer moves randomly between control and treatment, long-term measurement becomes contaminated.

Experiment dimensions

Destination model version
Offer strategy
Message tone
Recommendation placement
Number of recommended hotels
Channel
Send time
Personalization depth

Do not change several major variables simultaneously unless the experiment is specifically designed as multivariate.

30. Monitoring Design

Monitoring should cover four layers.

A. Infrastructure monitoring

API availability
Request latency
Stream lag
Consumer errors
Database latency
Cache hit rate
Model endpoint availability
Workflow failures
Dead-letter queue volume

B. Data monitoring

Missing customer IDs
Null feature rates
Unexpected categories
Event-volume drops
Duplicate rates
Late-arriving events
Inventory freshness
Price freshness
Schema violations

C. Model monitoring

Feature drift
Prediction drift
Calibration drift
Destination concentration
Low-confidence rate
Coverage
Model disagreement
Segment performance
Ranking quality

D. Business monitoring

Booking conversion
Revenue per recommendation
Incremental margin
Direct booking share
Offer cost
Cancellation rate
Customer opt-out rate
Complaint rate
Destination diversity
Hotel exposure concentration

A technically healthy system can still be commercially harmful, so all four monitoring categories are necessary.

31. Privacy and Security Architecture

Travel behavior can reveal sensitive personal patterns. Magnolia should therefore use privacy-by-design.

Data classifications

Public property data
Internal business data
Customer behavioral data
Personal identifiers
Sensitive inferred data
Payment-related data

Security controls

Encryption at rest
TLS in transit
Role-based access control
Attribute-based access control
Private networking
Secrets management
Key rotation
Tokenized customer identifiers
Centralized audit logging
Data-loss prevention
Retention enforcement
Right-to-delete workflow
Regional residency controls

Separate identity vault

The system should isolate direct identifiers:

Email
Phone number
Name
Address
Loyalty-account details

Models should normally use a tokenized customer ID, not raw personal identifiers.

Purpose-based access

A user may allow analytics but not marketing.

{
  "analytics": true,
  "personalization": true,
  "email_marketing": false,
  "sms_marketing": false,
  "paid_media": false
}

Every decision should evaluate purpose and channel consent at runtime.

32. Guardrails

Hard guardrails

These should be implemented as deterministic rules:

Never recommend unavailable inventory
Never invent a hotel rate
Never use an expired offer
Never exceed approved discount limits
Never message without channel consent
Never violate communication frequency caps
Never reveal sensitive inferred behavior
Never personalize price using protected attributes
Never present an unverified benefit
Never use stale availability beyond its time-to-live

Confidence behavior

Destination confidence ≥ 0.70:
Show a specific hotel recommendation.

Confidence 0.40–0.69:
Show several destination ideas.

Confidence below 0.40:
Use broad inspiration or standard content.

Confidence thresholds should be based on calibrated probabilities and business experiments, not arbitrary model scores.

33. Detailed AWS Implementation

A practical AWS implementation could use the following services.

Experience and API layer

Amazon CloudFront
AWS WAF
Amazon API Gateway
Amazon Cognito
Application Load Balancer

Application services

Amazon ECS on Fargate or Amazon EKS
AWS Lambda for lightweight event handlers
AWS Step Functions for orchestration
Amazon EventBridge for business events

Use ECS or EKS for model-serving and orchestration services that need predictable performance. Use Lambda for short event transformations and triggers.

Streaming

Amazon Kinesis Data Streams
Amazon Managed Streaming for Apache Kafka
Amazon Data Firehose
AWS Glue Schema Registry
Amazon SQS dead-letter queues

Storage and analytics

Amazon S3
AWS Glue Data Catalog
Apache Iceberg tables
Amazon Athena
Amazon Redshift
Databricks on AWS, where preferred

Identity and operational stores

Amazon DynamoDB
Amazon Aurora PostgreSQL
Amazon Neptune for identity graph, where needed
Amazon ElastiCache for Redis

Machine learning

Amazon SageMaker training jobs
SageMaker Pipelines
SageMaker Feature Store
SageMaker Model Registry
SageMaker real-time endpoints
SageMaker batch transform
SageMaker Model Monitor

Vector search

Amazon OpenSearch Service vector engine
or a managed vector database

Generative AI

Amazon Bedrock
Bedrock Guardrails
Knowledge Bases for Amazon Bedrock
Approved S3 content repository

Security

AWS IAM
AWS KMS
AWS Secrets Manager
AWS PrivateLink
Amazon VPC
AWS CloudTrail
Amazon GuardDuty
AWS Config
AWS Macie
AWS Lake Formation

Monitoring

Amazon CloudWatch
AWS X-Ray
Amazon Managed Grafana
Amazon OpenSearch dashboards
SageMaker Model Monitor

34. AWS Runtime Flow

1. Customer opens the mobile app.

2. CloudFront and API Gateway receive the request.

3. Cognito or the existing identity provider authenticates the customer.

4. The app requests:
   POST /v1/recommendations

5. API Gateway invokes the Magnolia Orchestration Service on ECS.

6. The orchestrator retrieves:
   - Customer profile from DynamoDB
   - Online features from Redis or SageMaker Feature Store
   - Consent from the policy store

7. SageMaker Intent Endpoint returns booking propensity.

8. Candidate Service queries:
   - OpenSearch vector index
   - Customer history
   - Popular and seasonal candidate sets

9. SageMaker Destination Ranker scores candidates.

10. Travel Window Endpoint estimates likely dates.

11. Inventory Service calls the reservation and rate APIs.

12. Hotel Ranker scores available properties.

13. Offer Service evaluates approved incentives.

14. Policy Service applies:
    - Consent
    - Frequency caps
    - Offer limits
    - Confidence thresholds

15. Bedrock produces copy using approved facts.

16. A validation service checks the generated text.

17. The recommendation is returned to the mobile application.

18. The recommendation decision is written to EventBridge and S3.

19. Customer response events are sent through Kinesis.

20. Outcome data is incorporated into future model training.

35. Suggested Availability Design

For a production travel platform:

Multiple Availability Zones
Stateless services across at least two or three AZs
DynamoDB global or regional redundancy
Aurora Multi-AZ
Redis replication group
Kinesis multi-AZ durability
S3 versioning
Automated backups
Infrastructure as code
Cross-Region disaster-recovery plan

Recovery objectives

Illustrative targets:

Recommendation API:
RTO under 30 minutes
RPO near zero for operational state

Analytics and training:
RTO under 8 hours
RPO under 1 hour

Raw event storage:
RPO near zero through durable streaming and S3

Recommendation serving should degrade gracefully to cached or generic recommendations if the ML platform is temporarily unavailable.

36. Team Ownership Model

A platform this broad needs explicit ownership.

37. Recommended Delivery Roadmap

Phase 1: Data foundation

Build:

Event taxonomy
Streaming ingestion
Reservation and loyalty pipelines
Customer identity resolution
Consent integration
Customer 360
Initial lakehouse model
Recommendation outcome tracking

Deliverable:

Trusted customer and travel data foundation.

Phase 2: Minimum viable prediction

Build:

Travel intent model
Destination candidates
Destination ranker
Batch recommendations
Simple rules-based hotel selection
Email campaign integration
Control and treatment experiments

Deliverable:

A measurable destination recommendation pilot.

Phase 3: Real-time hotel intelligence

Build:

Online feature store
Real-time Recommendation API
Travel-window prediction
Inventory integration
Hotel ranking
Website and mobile personalization

Deliverable:

Real-time, inventory-aware hotel recommendations.

Phase 4: Commercial optimization

Build:

Offer selection
Uplift modeling
Expected-margin optimization
Best channel and time
Frequency optimization
Call-center integration

Deliverable:

Profit-optimized decisioning across channels.

Phase 5: Generative experience

Build:

Grounded content generation
Brand knowledge retrieval
Automated factual validation
Multilingual copy
Agent-assist scripts
Content experimentation

Deliverable:

Scalable, personalized communication within approved boundaries.

Phase 6: Enterprise maturity

Build:

Continuous retraining
Model-drift automation
Multi-region reliability
Advanced causal experimentation
Destination fairness and coverage
Enterprise governance dashboard
Self-service campaign activation

Deliverable:

A governed enterprise travel-intelligence platform.

38. The Most Important Design Decision

The most important architectural principle is to keep the AI recommendation separate from the business authorization.

The model may say:

Maui is the most likely destination.
Ocean Pearl Maui is the highest-ranked hotel.
A 15% discount may improve conversion.

But the policy and decision layer must determine:

Is the hotel currently available?
Is the rate verified?
Is the customer eligible?
Is marketing consent active?
Would free breakfast be more profitable?
Has the customer already received too many messages?
Is the confidence high enough for a specific recommendation?
Is this customer part of a control group?

Therefore, Magnolia’s production flow should always be:

Model Recommendation
        ↓
Business Decisioning
        ↓
Consent and Governance
        ↓
Inventory and Price Verification
        ↓
Customer Activation

That separation makes Magnolia Whispers accurate, explainable, commercially responsible, and safe enough to operate across a large hotel organization.

Magnolia Whispers AI is a predictive travel intelligence agent that identifies the destination a customer is most likely to book next and recommends the right hotel, package, and offer at the right moment.

It analyzes signals such as:

• Previous hotel stays and searched destinations

• Browsing and booking behavior

• Preferred hotel brands, amenities, and price ranges

• Travel seasonality and typical booking windows

• Loyalty status and reward activity

• Trip purpose, such as business, leisure, family, or romantic travel

• Similar customer travel patterns

• Current promotions, events, and available inventory

How it works

Customer Data
      ↓
Travel Preference Profile
      ↓
Destination Prediction Model
      ↓
Hotel and Offer Ranking
      ↓
Personalized Recommendation
      ↓
Email, Website, App, or Agent Outreach

Example

Magnolia Journey AI may identify that a customer who previously booked luxury coastal hotels in Miami and Cabo is likely to travel to Maui within the next 60 days.

The agent could then recommend:

“Your next escape may be closer than you think. Explore five-night oceanfront stays in Maui, selected around your preferred travel dates and hotel style.”

Core capabilities

Next-destination prediction: Scores destinations based on the probability that the customer will book them.

Hotel recommendation: Ranks properties according to the customer’s budget, preferences, loyalty profile, and prior behavior.

Best-time-to-contact prediction: Determines when the customer is most likely to engage and purchase.

Personalized offer generation: Selects upgrades, packages, loyalty incentives, or discounts most likely to convert.

Continuous learning: Improves predictions based on searches, clicks, rejected offers, and completed bookings.

Business value

Magnolia Whispers AI helps hotel groups and travel companies increase direct bookings, improve campaign conversion, reduce generic marketing, grow loyalty engagement, and identify customer demand before the traveler explicitly searches for a destination.

[ Customer Data Ingestion ]
             │
             ▼
[ Travel Preference Profile (Graph/Vector) ]
             │
             ▼
[ Destination Prediction Model ]
             │
             ▼
[ Hotel & Offer Ranking Engine ] ─── (Real-time Inventory & Promos)
             │
             ▼
[ Personalization & Creative Generation ]
             │
             ▼
[ Multi-Channel Outreach API ] ─── (Email, Web, App, Agent)
             │
             ▲
             └─ [ Continuous Learning Loop (Clicks, Bookings, Skips) ]

┌────────────────────────────────────────────────────────┐
│               1. Next-Destination Model                │
│ Inputs: Graph embeddings, seasonality, lookalike pools │
│ Output: Probability score per destination matrix       │
└───────────────────────────┬────────────────────────────┘
                            │ (Top Destinations)
                            ▼
┌────────────────────────────────────────────────────────┐
│               2. Hotel & Offer Ranker                  │
│ Inputs: Budget, loyalty tier, live yield inventory     │
│ Output: Ranked properties, exact rooms, custom perks   │
└───────────────────────────┬────────────────────────────┘
                            │ (Validated Recommendations)
                            ▼
┌────────────────────────────────────────────────────────┐
│             3. Best-Time-To-Contact Engine             │
│ Inputs: Historic engagement logs, transaction timing   │
│ Output: Optimized dispatch window (Day/Hour/Channel)  │
└────────────────────────────────────────────────────────┘
